원래 장소:
중국
브랜드 이름:
HWASHI
인증:
CE
모델 번호:
WL-SQ-150K*2
연락주세요

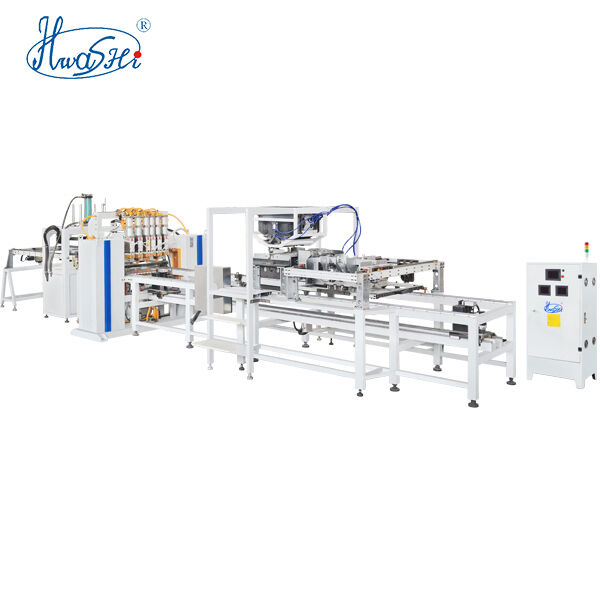

Introducing the Hwashi SQ-MF25K Automatic Wire Mesh Gantry Welder — a revolutionary production system featuring automatic wire layout, multi-point wiring, and fully automated feeding for large-scale mesh fabrication. Engineered for supermarket shopping carts, storage cages, pet crates, warehouse rack shelving, and guardrail mesh panels. This machine transforms manual-intensive mesh production into a streamlined, high-efficiency operation.

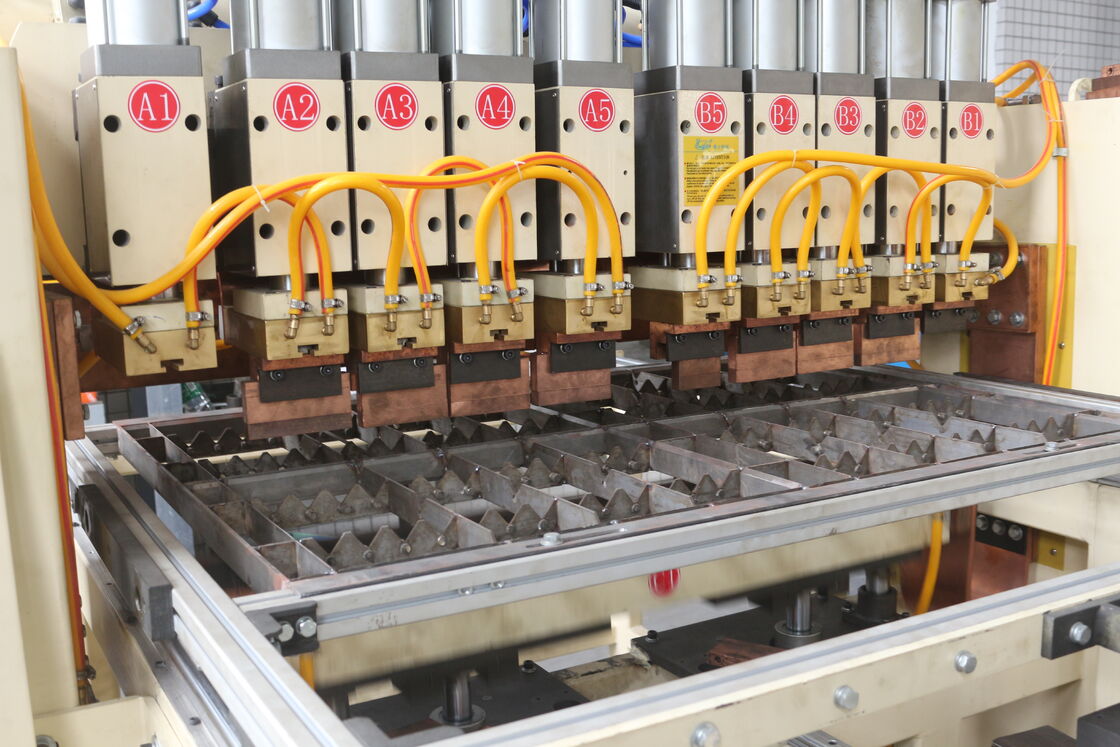

The SQ-MF25K is a fully automated gantry wire mesh welding system designed for high-volume production of standard and custom-shaped large mesh panels. The system combines five independent wire layout mechanisms with six MFDC inverter power supplies to deliver unprecedented welding speed and consistency.
What makes the SQ-MF25K a game-changer is its complete automation workflow — automatic wire arrangement, automatic feeding, automatic welding, and automatic panel discharge. The transformation speaks for itself: before automation, 8 workers in 2 shifts produced 800 pieces/day; after SQ-MF25K installation, just 2 operators oversee 3,200 pieces/day — a 4* efficiency boost with 99.5% pass rate and an 8-month ROI.
This is the ultimate solution for mesh manufacturers seeking to eliminate labor bottlenecks, reduce production costs, and scale output without expanding workforce.
The SQ-MF25K combines four core subsystems working in perfect synchronization:
The HMI control panel allows operators to configure wire spacing, mesh dimensions, and welding patterns for different product specifications.
| Feature | Specification |
|---|---|
| Automation Level | Fully automatic — wire layout + feeding + welding |
| Layout Mechanisms | 5 independent wire arrangement units |
| Power Supplies | 6* MFDC inverter units (25KVA each) |
| Feeding System | Automatic servo-driven feeding & discharge |
| Weld Speed | Up to 3,200 pieces/day (vs. 800 manual) |
| Operator Requirement | 2 operators per shift (vs. 8 manual) |
| Pass Rate | 99.5% first-pass yield |
| ROI Period | 8 months |
| Duty Cycle | ≥50% continuous production |
| Parameter | Specification |
|---|---|
| Model | SQ-MF25K |
| Input Power | 3Φ4W 380V±10%, 50/60Hz |
| MFDC Power Capacity | 6* 25KVA (150KVA total) |
| Inverter Frequency | 1000Hz |
| Current Control Accuracy | ±1% |
| Duty Cycle | ≥50% |
| Repeat Positioning Accuracy | ≤±0.15mm |
| Cooling System | Water-cooled |
| Certifications | ISO 9001, CE |
