Name: Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 25,000.00 USD
Availability: InStock

집 > 제품 > 축전기 출력 용접 기계 >

Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles

Medium frequency spot welder with dual heads

Automatic spot welder for barrel hoops

MFDC inverter spot welding machine

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

모델 번호:

WL-SQ-MF160Kx2

연락주세요

인용문을 요구하세요

제품 상세정보

제품명:

냉장고 와이어 튜브 콘덴서 생산 라인 기계 용접 굽기 기계 금속 와이어 가공

치수(l*w*h):

5000x2400x2200mm

무게:

2500KG

효과적인 용접 폭:

(주문 제작된) 600-1000mm

보증:

1년

변신 로봇:

MF DC 변환기

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

FCL을 위한 PVC 영화의 바다 훌륭한 나무로 된 패키지

배달 시간

30 - 당신의 대금을 받은 후 60 근무일

지불 조건

신용장, 티/티

공급 능력

달 당 50 세트

MFDC Double-Head Spot Welding Machine with Dual-Point Welding and MFDC Transformer for Barrel Hoop Lock Clips (600-1000mm Welding Width)

최상의 가격을 얻으세요

동영상

Hwashi Wl-Sp-1ook AC 스팟 용접 기계 고성능 전기 스팟 용접기

최상의 가격을 얻으세요

동영상

15KVA 콘덴시터 배열 용접 기계

최상의 가격을 얻으세요

동영상

Hwashi 15KVA SS 요리 용품 냄비 손잡이에 대한 응압 방출 용접 기계

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

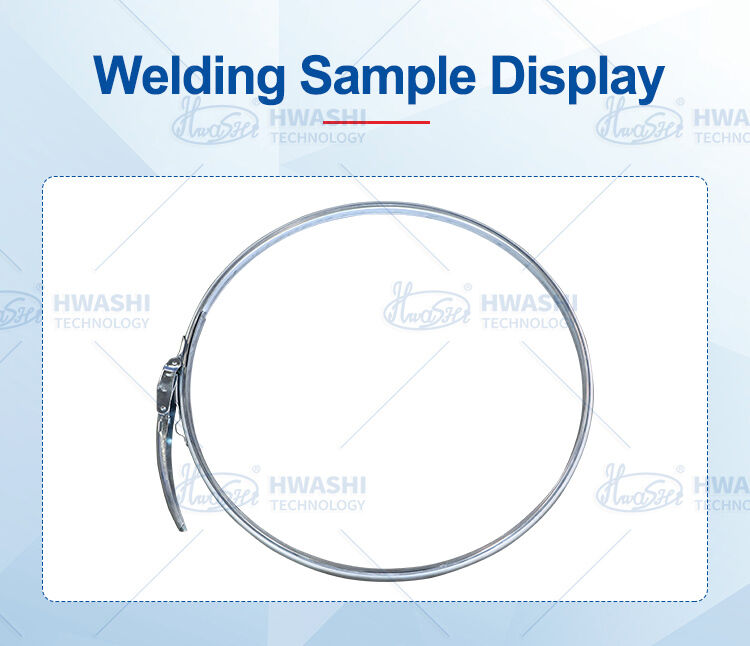

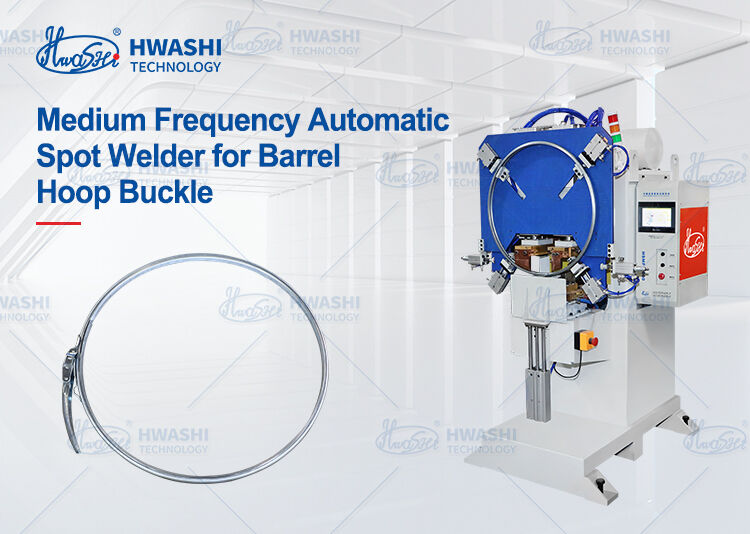

Medium Frequency Automatic Spot Welder for Barrel Hoop Buckle

On every steel drum, the hoop buckle is the most critical component—it's the mechanical latch that tightens and locks the barrel hoop in place, bearing the full clamping force during sealing, opening, and transportation. A failed buckle weld results in loose hoops, broken seals, and leaked contents. For industries handling chemicals, petroleum, or food products, this represents not just a quality issue but a safety and compliance failure.

Hwashi's Medium Frequency Automatic Spot Welder for Barrel Hoop Buckles is engineered to prevent such failures. This machine automates the entire buckle welding process: operators load the hoop and buckle, and the machine positions, clamps, and welds both attachment points with precise MFDC energy before releasing the finished part. Every weld is identical—consistent nugget size, penetration depth, and pull strength—ensuring reliability shift after shift, drum after drum.

What distinguishes this machine is the integration of medium-frequency inverter DC technology with a welding process specifically optimized for barrel hoop buckles. The MFDC power supply handles galvanized steel hoops without spatter or coating damage. The fixture system accommodates the curved geometry of barrel hoops, and dual welding heads deliver symmetrical, simultaneous welds unmatched by single-head machines.

Key Differentiating Features

Automatic Welding Cycle

Eliminates operator skill dependency with fully automated clamping, electrode approach, welding current profile, hold time, and retraction. Ensures consistent weld quality regardless of operator experience.

MFDC Inverter Technology

Operates at 1000Hz for rapid, concentrated energy pulses that form solid weld nuggets before zinc coating vaporizes. Results in clean welds with minimal spatter, intact zinc coating, 30%+ energy savings, and power factor ≥0.90.

Dual Welding Heads

Simultaneous, synchronized welding of both attachment points ensures symmetrical weld quality under identical conditions. Eliminates thermal and mechanical variations found in single-head processes.

Curved-Surface Fixturing

Engineered specifically for barrel hoop curvature with shaped contact blocks and custom electrodes. Ensures full, even contact at welding positions without shimming or compromise.

Operational Flexibility

Accommodates multiple drum sizes through quick-change fixture components and programmable welding parameters. Store and recall up to 101 welding programs—switch between 55-gallon drum hoops and 20-liter pail hoops in minutes without recalibration or test welds.
