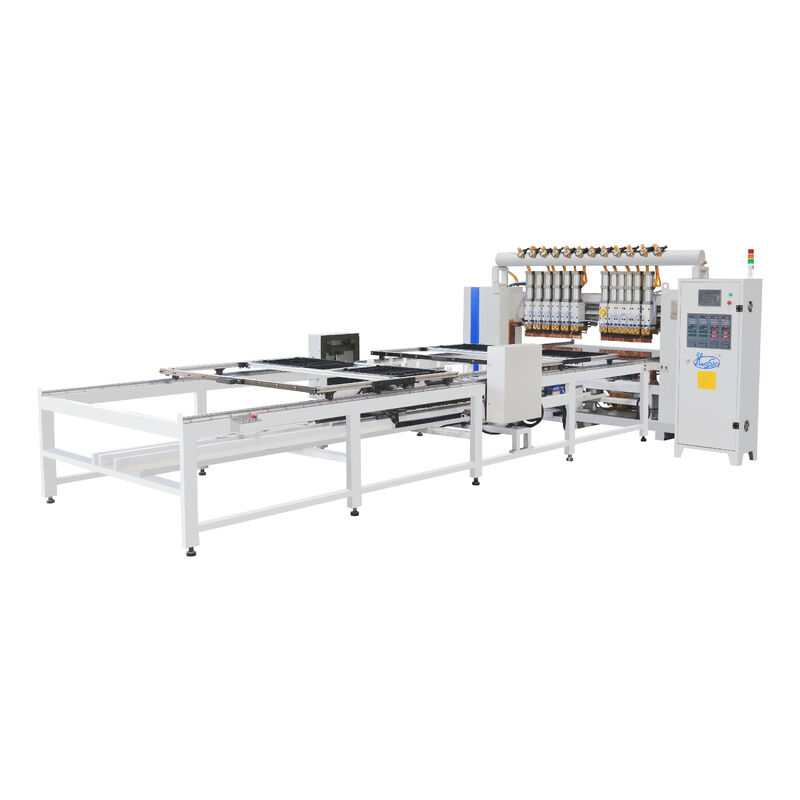

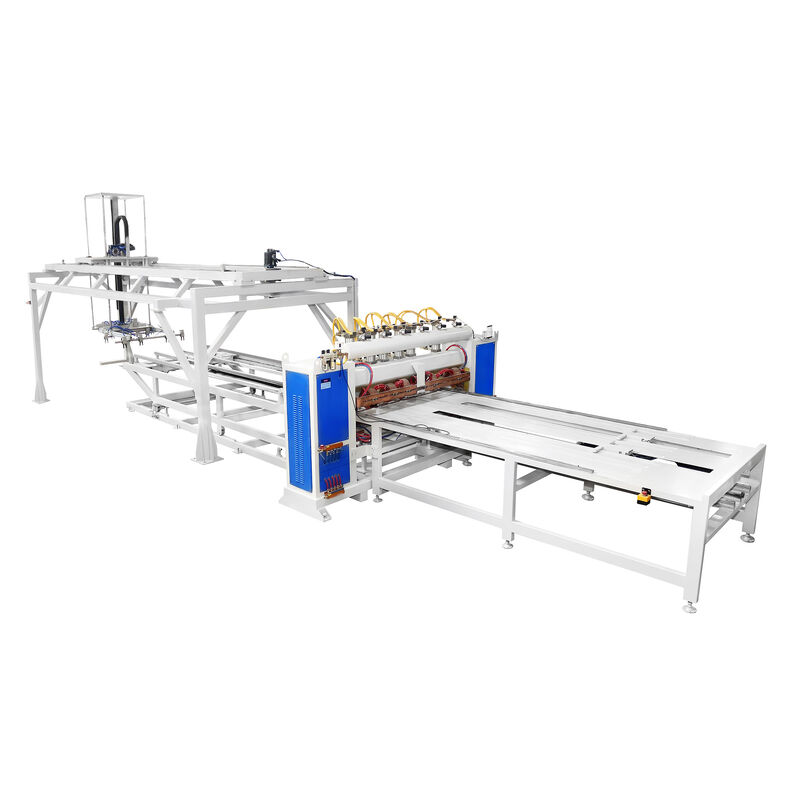

Compact Condenser Welding Machine Designed for Easy Integration into Refrigeration and Air Conditioning Assembly line

Complete automated production line for manufacturing wire tube condensers with integrated welding and bending capabilities for metal wire processing.

This condenser welding production line delivers exceptional efficiency and consistency through automated processes and precise control. The system ensures welding process stability and reliability while minimizing manual intervention and operational errors. High-speed welding and cooling devices significantly boost productivity and reduce manufacturing cycles. The production line offers flexible customization to accommodate various condenser models and specifications.

• High-speed wire straightening and cutting machine
• Tube straightening and cutting machine
• Tube bending machine
• Automatic condenser welding machine
• Additional equipment: tube end expanding/shrinking machine, condenser folding machine

We design complete production lines based on your product drawings and efficiency requirements. Simply provide your specifications, and our engineers will develop the optimal solution for your needs.

• Space-optimized frame design — significantly smaller than standard gantry-type condenser welders
• Easy bolt-in integration into existing refrigeration/AC assembly lines
• Minimal floor space requirement; ideal for high-density production layouts
• Modular structure for future line expansion or reconfiguration

• Second-generation MFDC power source — 30%+ more energy-efficient than conventional AC welders
• Fast current rise time, stable DC output, superior welding quality
• Three-phase balanced input — no impact on factory power grid
• Current control accuracy within ±1% for consistent weld nugget size

• Programmable logic controller with touch screen human-machine interface
• Multi-program storage — quick changeover between different condenser models
• Squeeze → Weld → Hold → Off four-sequence control, fully adjustable per parameter
• Real-time welding monitoring with fault alarm and diagnostic display

• Each welding head equipped with independent air pressure adjustment
• Precise and consistent electrode force per weld point
• Imported sealed cylinder rings for long service life and stable performance
• Pneumatic pressure range: 0.4–0.6 MPa

We design full automatic or semi-automatic production line systems for refrigerator condensers tailored to your specific manufacturing requirements.
