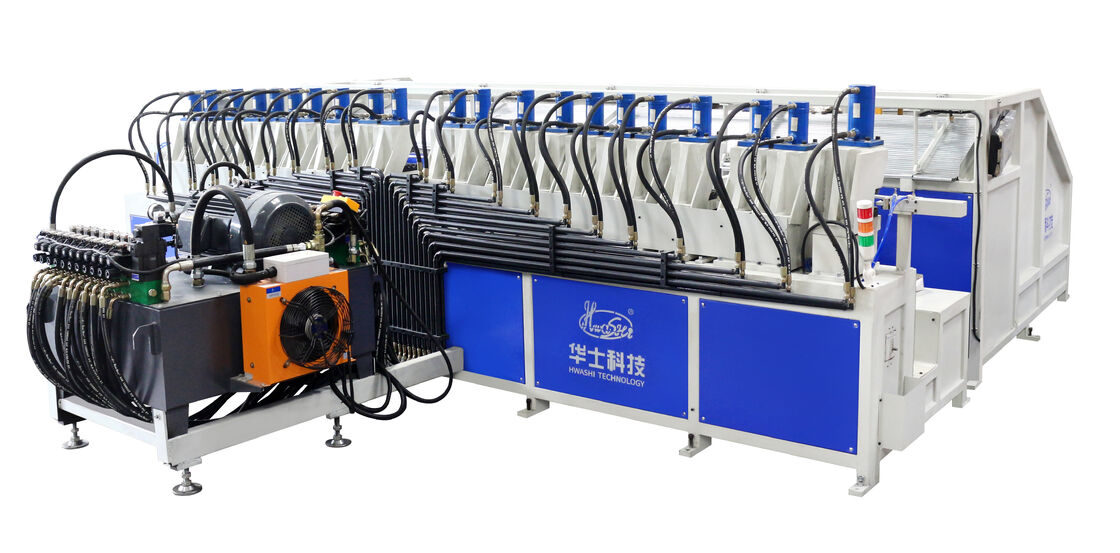

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.
|
Finished Product
|
Processing Workflow: Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley. |
| Pipe Diameter | Round pipe 18mm (customizable) |
| Pressing Source | Hydraulic |
| Pressing Mark Number | 20 |
| Cutting Function | Yes |
| Each Time Processing Number | 2 pieces |
| Efficiency | 12-15 seconds per 2 pieces |
Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
