Name: Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

집 > 제품 > IBC 용접기 >

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

PLC Control IBC Tube Forming Machine

Full Automation IBC Frame Tube Pressing Machine

Hydraulic Pressing IBC Short Tube Forming Equipment

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

모델 번호:

WL-SQ-150K*2

연락주세요

인용문을 요구하세요

제품 상세정보

제품명:

IBC 프레임 튜브 성형 기계용 Hwahsi 자동 짧은 튜브 프레스 및 성형 기계

제어 시스템:

PLC

포장:

나무로 되는 패킹

사양:

CCC

보증:

1년

용접 전원:

AC / MF DC

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

FCL 용 바다 가치있는 목재 패키지 또는 PVC 필름

배달 시간

지불을받은 후 30-45 일

지불 조건

신용장, 티/티

공급 능력

달 당 50 세트

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

최상의 가격을 얻으세요

동영상

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

최상의 가격을 얻으세요

동영상

누수 테스트 및 50초/개 용접 효율을 갖춘 완전 자동 IBC 그리드 케이지 프레임 생산 라인

최상의 가격을 얻으세요

동영상

60초당 케이지 사이클 시간을 가진 ISO9001 인증 2000kg 무게의 IBC 케이지 자동 생산 기계

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

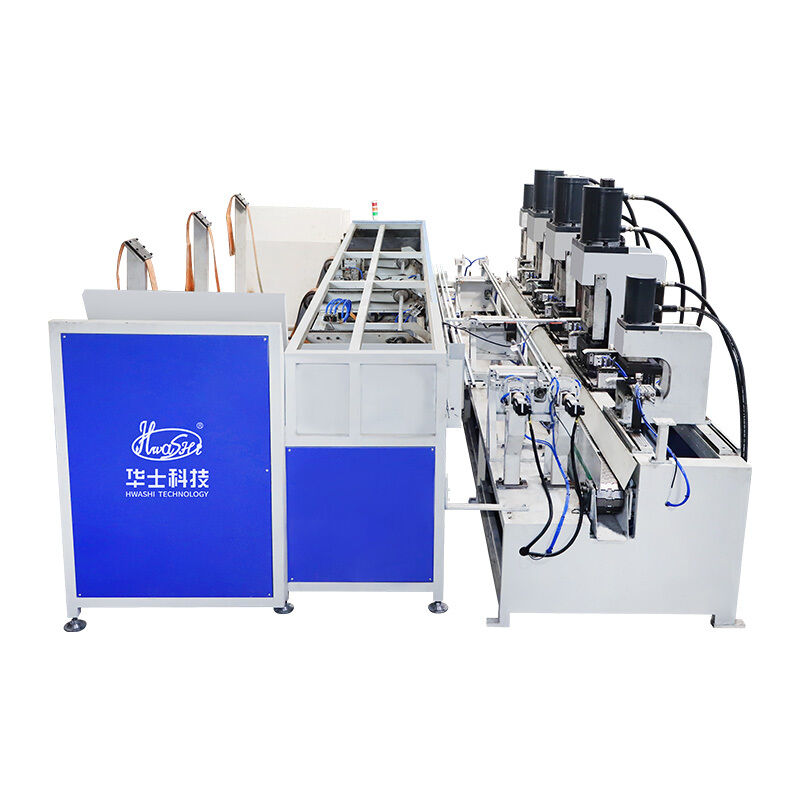

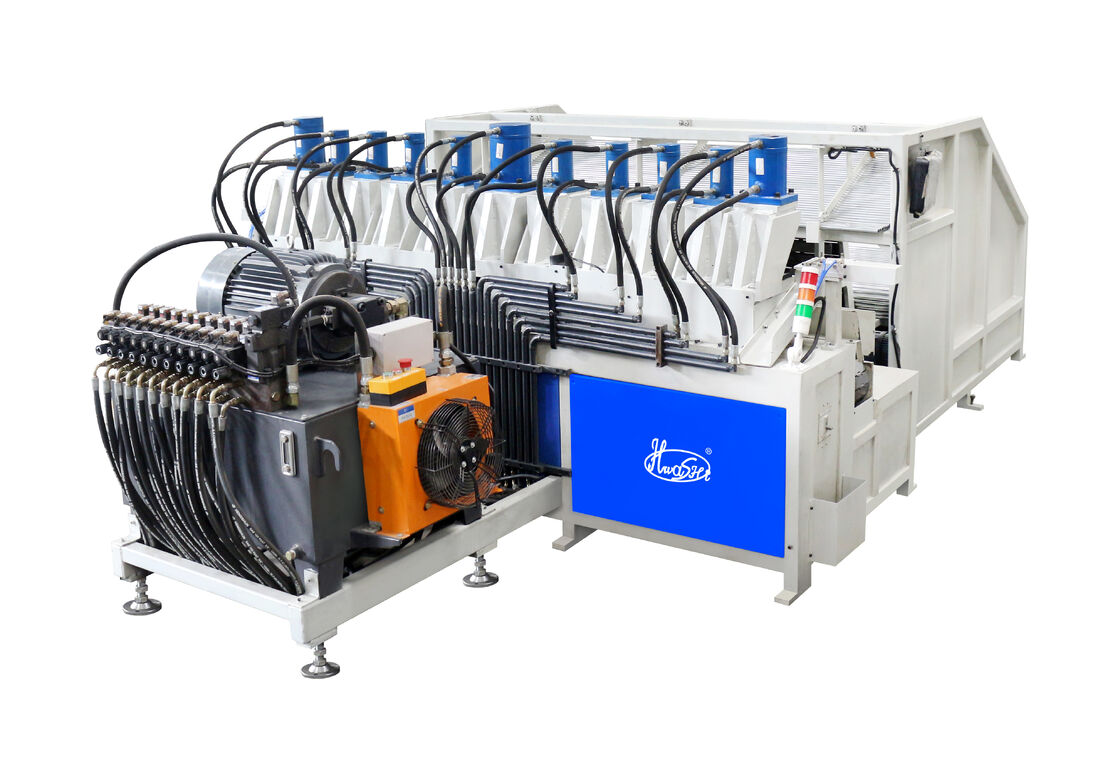

Hwahsi Automatic IBC Short Tube Pressing and Forming Machine for IBC Frame Tube

The Hwahsi Automatic Short Tube Pressing and Forming Machine is a specialized custom solution for IBC tube processing. This advanced system performs fully automated pipe feeding, pipe end forming and cutting, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features and Benefits

Full Automation: Complete automated operation eliminates manual intervention requirements
High Production Efficiency: Automated functions significantly increase production speed and reduce processing cycles
Precision Quality Control: Advanced control system ensures consistent pipe forming quality meeting industry standards
Labor Cost Reduction: Fully automated operation eliminates continuous human supervision needs
Multi-Functional Design: Integrated processing including pipe feeding, forming, cutting, and hydraulic pressing in one unit

Automated Processing Workflow

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station.

The mechanical arm picks up two pipes and positions them at the hydraulic pressing station for pressing and tube end shrinking. After processing, tubes are automatically unloaded to the conveyor system for transfer to collection trolleys.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic system
Pressing Mark Number	8 marks
Cutting Function	Integrated cutting capability
Processing Capacity	2 pieces per cycle
Production Efficiency	12-15 seconds per 2 pieces

This specialized IBC tube processing machine provides manufacturing businesses with an efficient, precise, and cost-effective production solution that enhances overall production line performance.
