Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

집 > 제품 > 철망 용접기 >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

3000mm Effective Welding Length Wire Mesh Welding Machine

1-5mm Welding Thickness Wire Mesh Welder

1000mm x 1000mm Mesh Welding Range Automatic Wire Mesh Welding Machine

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-SQ-MF100K

연락주세요

인용문을 요구하세요

제품 상세정보

2D 와이어 핸들 벤딩 머신:

2-6mm 와이어 굽힘을 위해 와이어 핸들을 구부립니다

효과적인 용접 폭:

1200mm

제품 카테고리:

와이어 메쉬 용접 기계

제품명:

용접 전원 와이어 메쉬 용접기 용 3 상 MF DC 전원 공급 시스템

와이어 에지 트리밍 머신:

와이어 프레임에서 와이어 가장자리를 차단하여 표면을 깨끗하고 매끄럽게 만듭니다.

최대 배선 속도:

200mm/s

효과적인 용접 길이:

3000mm

고속 와이어 교정 및 절단 기계:

정상 속도의 거의 5 배에서 2mm ~ 4mm 와이어의 배치 생산을 만듭니다.

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

바다 가치있는 나무 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

신용장, 티/티

공급 능력

한 달에 50 세트

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

최상의 가격을 얻으세요

동영상

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

최상의 가격을 얻으세요

동영상

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

최상의 가격을 얻으세요

동영상

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

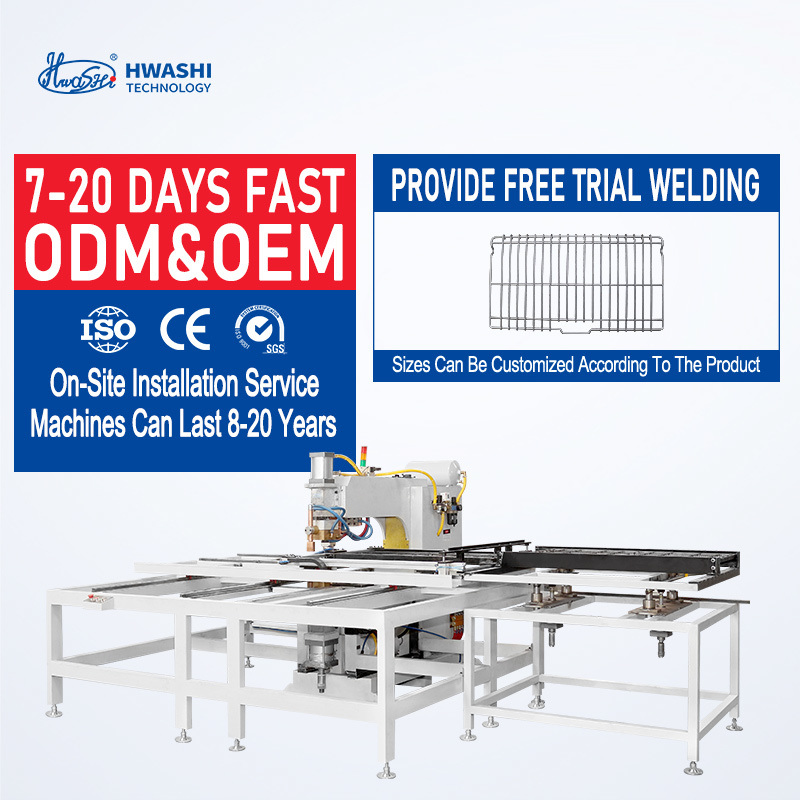

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products

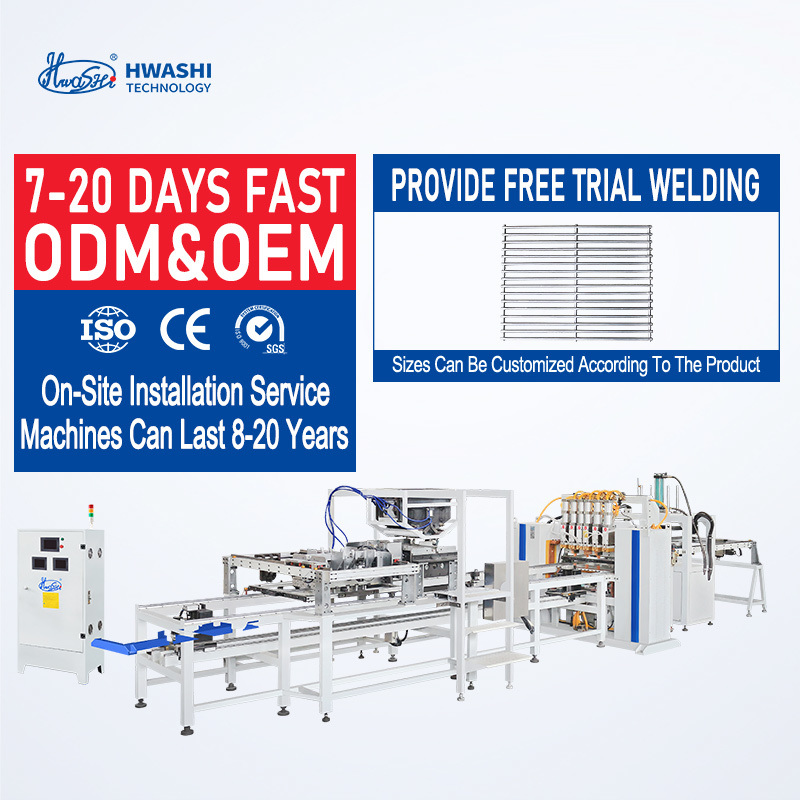

Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
