Name: Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS
Price: 20 USD
Availability: InStock

집 > 제품 > 솔기 용접 기계 >

Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects

원래 장소:

중국

브랜드 이름:

hwashi

인증:

모델 번호:

WL-FS

연락주세요

인용문을 요구하세요

제품 상세정보

용접 지름:

50-800mm

입력 전원:

100kVA

사용:

시임 용접 기계

색상:

맞춤형

지불과 운송 용어

최소 주문 수량

가격

US$20,000

포장 세부 사항

나무 상자

배달 시간

30-60 일

지불 조건

L/C, T/T

공급 능력

10개 세트 / 달

Hwashi High-Precision Longitudinal Seam Welder Automated Fuel Tank Welding Solution with Superior Leak-Proof Performance

최상의 가격을 얻으세요

동영상

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

최상의 가격을 얻으세요

동영상

HWASHI 톱니 용접 기계 다양한 응용 프로그램 75KVA 26500A 안정적이고 용접력 강하고 일관성있는 용접 톱니

최상의 가격을 얻으세요

동영상

HWASHI 환기 통로 수동 틴 캔 사이드 웨일더 롤에서 롤 배너 웨일더 75KVA 26500A

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects

Product ApplicationRevolutionize your fuel tank production with the Hwashi High-Precision Longitudinal Seam Welder, an automated welding solution engineered to deliver unparalleled leak-proof performance. This cutting-edge machine combines advanced servo control technology with high-precision sensors, ensuring each weld seam is flawlessly executed with a precision tolerance of ±0.1mm, minimizing the risk of fuel leakage and enhancing product safety.

Welding Method of The Seam Welding Machine
Designed for high-volume manufacturing, the Hwashi Seam Welder integrates seamlessly into existing production lines, boosting efficiency by 300% compared to traditional manual welding methods. Its modular structure simplifies maintenance, reducing downtime, and the energy-saving inverter technology cuts operational costs by up to 40%. Ideal for automotive, aerospace, and heavy machinery industries, this solution complies with international safety standards (CE, ISO 9001) and offers customizable configurations to meet diverse fuel tank designs. Transform your welding operations with the Hwashi Seam Welder—where precision meets reliability for leak-free fuel tank production.
Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.
2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.
3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.
4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions.
7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

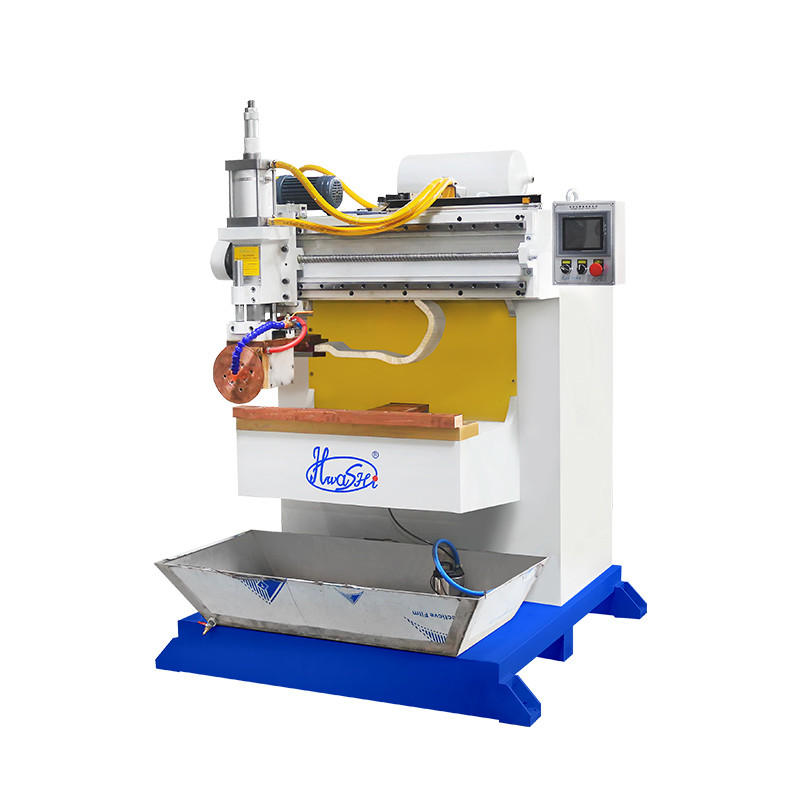

Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects 1

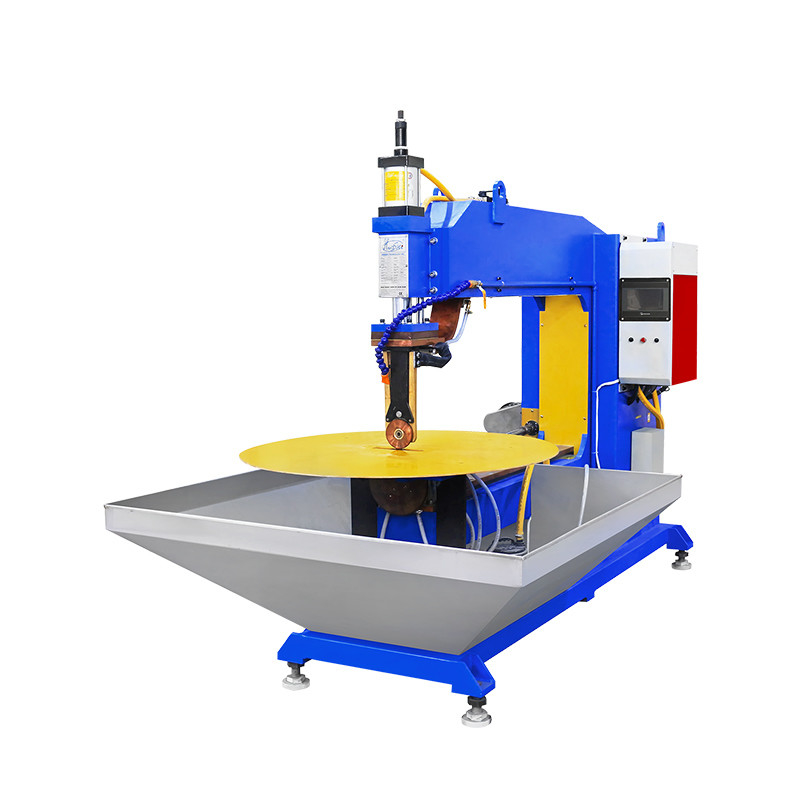

Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects 2

Specification

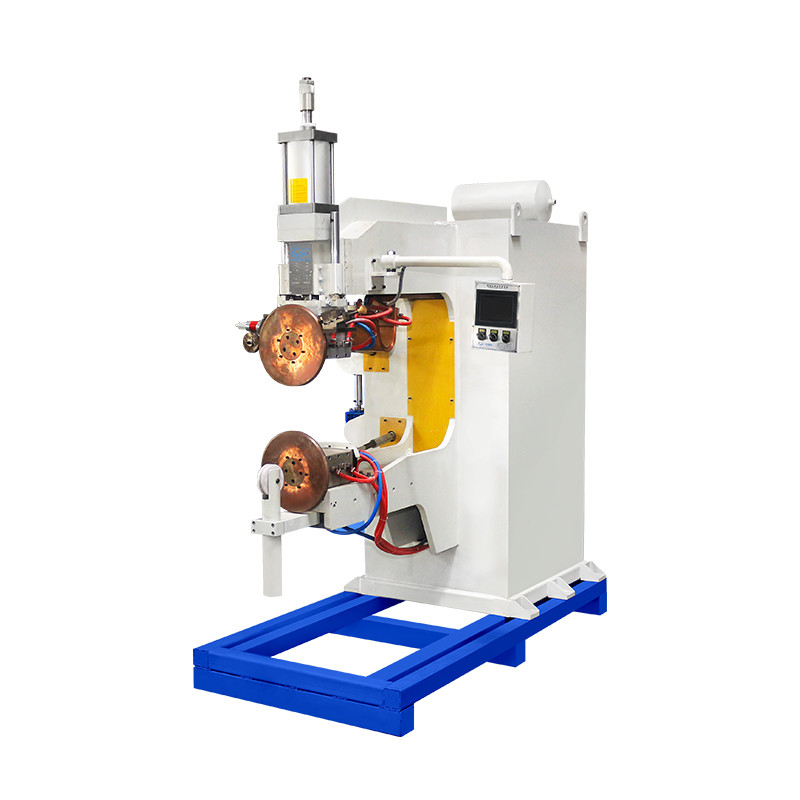

Hwashi High-Speed Longitudinal Seam Welding Automatic Fuel Tank Welding for High-Volume Manufacturing with Minimal Defects 3

Model	Welding Wheel Manner	Input Voltage	Output Power	Output Current
WL-FSH-16K	Horizontal	220/ 380V	16KW	10000 A
WL-FSL-25K	Circular	220/ 380V	25 KW	12000 A
WL-FSH-25K	Horizontal	220/ 380V	25 KW	12000 A
WL-FSH-35K	Horizontal	380V	35 KW	16000 A
WL-FSZ-50K	Vertical	380V	50 KW	19500 A
WL-FSZ-75K	Vertical	380V	75 KW	24000 A
WL-FST-50K	Special Machine structure	380V	50 KW	19500 A
WL-FST-150K	Special Machine structure	380V	150 KW	40000 A
WL-FST-200K	Special Machine structure	380V	200 KW	50000 A
WL-FS-100K	Vertical	380V	100 KW	30000 A
