Name: Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

집 > 제품 > 판금 용접공 >

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Squatrack Sheet Metal Welder

7axis Sheet Metal Welder

Automatic Spot Welding Sheet Metal Welder

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

모델 번호:

WL-SF-MF-100K/120K/160K

연락주세요

인용문을 요구하세요

제품 상세정보

제품 이름:

HWASHI CNC SEVEN 7AXIS Double Heads 판금 용접기 자동 스폿 용접 기계 Squatrack

크기 (L*W*H):

2500x1200x1950mm

무게:

800 킬로그램

사용:

철제 패널의 용접

보증:

1년

트랜스:

MF DC 변환기

지불과 운송 용어

최소 주문 수량

1 세트

가격

협상 가능

포장 세부 사항

바다 훌륭한 나무로 된 패키지

배달 시간

당신의 대금을 받은 후 일이 20일부터 30일까지 일합니다

지불 조건

L/C, T/T

공급 능력

한 달에 50 세트

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

최상의 가격을 얻으세요

동영상

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

최상의 가격을 얻으세요

동영상

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

최상의 가격을 얻으세요

동영상

하와시 CNC 일곱 7축 이중 헤드 엽 금속 스팟 용접 기계, 스쿼트랙을 위한 자동 엽 금속 용접기

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Product Description

This machine is customized according to your welding requirement and your product specifications. The machine adopts two sets of welding mechanism through the CNC servo system, including X direction mobile welding, Y direction of the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also Z direction lifting and A direction rotation, with CNC system to control seven asix to achieve the movement of different positions for the welding mechanism.

Features

The equipment welding power supply adopts medium frequency inverter power supply. The equipment can realize the automatic welding production of the workpiece, automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, and the production efficiency and automation degree are high.

Applications

Mainly used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be or inconveniently welded by general fixed welders. It is widely used in industries such as automobiles, civil sheet metal, anti-theft doors, cabinets, and household appliances.

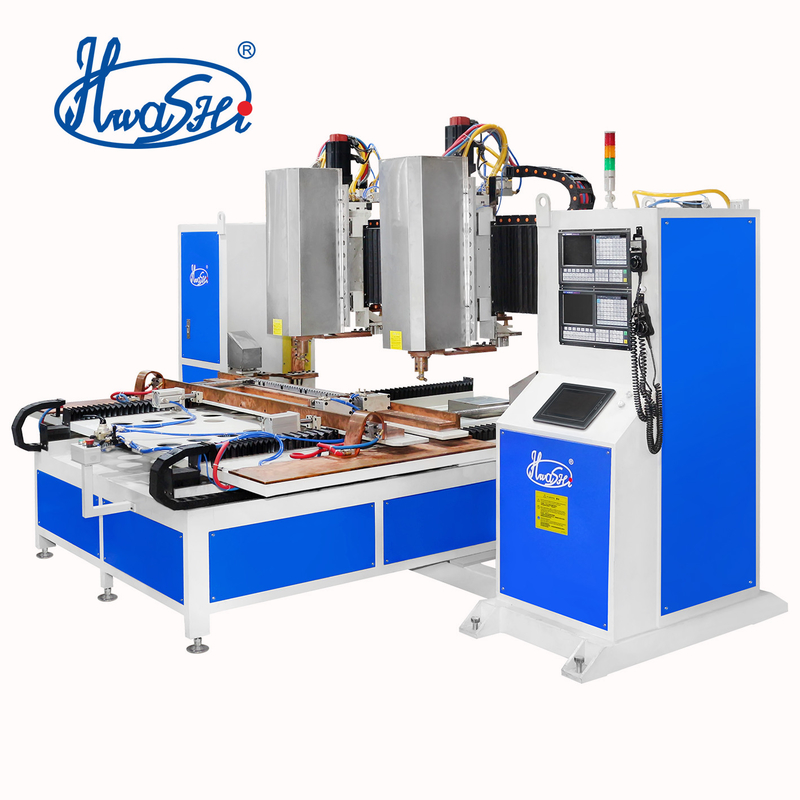

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack 1

S.N	Items	WL-AT-MF 15
1	Input Voltage	380v,3-Phase
2	Input Power	160KVAx2
3	Max.Welding Current	32000 Ax2
4	Welding Specification	32 Kinds
5	Different Welding Current	5000
6	Effective Size Of Welding Platform	1500mmx1500mm
7	X Axis Effective Width	750 mm
8	Y Axis Effective Length	1500 mm
9	X Axis Servo Motor	2 Sets
10	Y Axis Servo Motor	2 Sets
11	Feeder Moving Speed	800 mm/sec
12	Servo Motor Power	450 W
13	Welding Cylinder	2 NO.(80x50mm)
14	Upper Welding Electrode	2 Sets
15	Lower Electrode	full flat table
