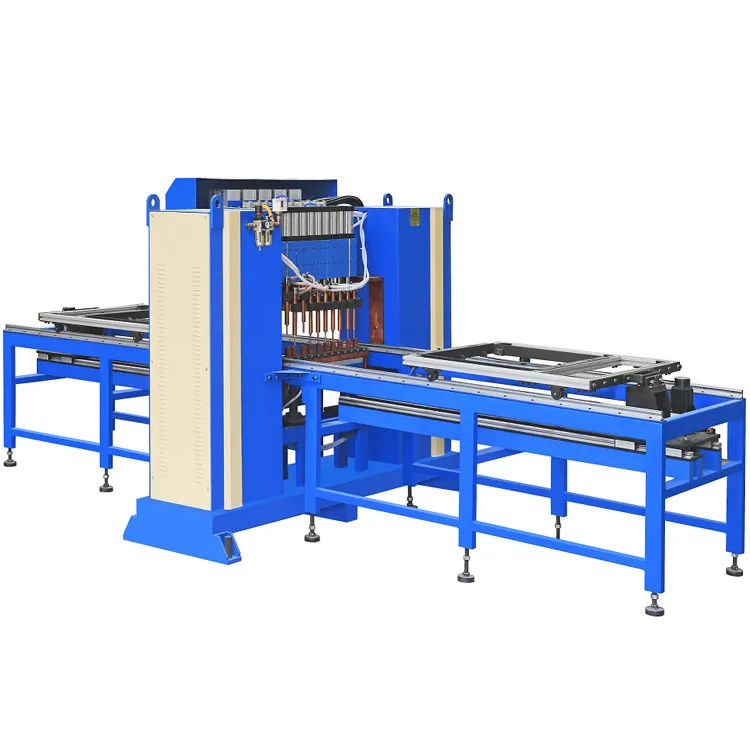

Name: Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

집 > 제품 > 판금 용접공 >

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Gantry Type Inverter Welding Machine

Automatic Door Welding Machine

Sheet Metal Welding Machine

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

모델 번호:

WL-SF-MF-100K/120K/160K

연락주세요

인용문을 요구하세요

제품 상세정보

제품 이름:

Hwashi 판금 맞춤형 용접기 용접기 강철 바닥 아연 도금 패널 자동 스팟 용접 기계 금속 플레이트

크기 (L*W*H):

2500x1200x1950mm

무게:

800 킬로그램

사용:

철제 패널의 용접

보증:

1년

트랜스:

MF DC 변환기

지불과 운송 용어

최소 주문 수량

1 세트

가격

협상 가능

포장 세부 사항

바다 훌륭한 나무로 된 패키지

배달 시간

당신의 대금을 받은 후 일이 20일부터 30일까지 일합니다

지불 조건

L/C, T/T

공급 능력

한 달에 50 세트

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

최상의 가격을 얻으세요

동영상

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

최상의 가격을 얻으세요

동영상

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

최상의 가격을 얻으세요

동영상

하와시 CNC 일곱 7축 이중 헤드 엽 금속 스팟 용접 기계, 스쿼트랙을 위한 자동 엽 금속 용접기

최상의 가격을 얻으세요

연락주세요

+86-13380655800

export_trade@hwashi.com

86-752-3528326

지금 접촉하세요

제품 설명

HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine for Metal Plate

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 0

Product Description 1. Intellectual touch-screen microcomputer controller, completely digital control, automatic detection and compensation, loose welding and false welding are well prevented. 2. Panasonic touch-screen hunan-computer interface, Panasonic programmer is adopted as the control hub, in charging of reading and dealing with control signal to guarantee that the machine operation is in order and effective. 3. roups of welding electrodes can be moved from left to right, all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation Welding Method: Since the work piece is sealed, then T Type welding is adopted. The bigger tube is placed in the Groove R of the bottom mould. The smaller tube is placed on the top. Instantaneous large current of welding method. The Maximum current could reach 200KA. Locating Mode: The bigger tube is clamped in the Groove R of the bottom mould while the smaller tube is clamped and located on the top. Electrode Mode: Since this work piece is circular tube, then the upper and lower electrodes both adopt the mosaic structure with R. The top electrode adopts floating terminal device to ensure the smoothness of the welding surface. Feeding Mode: The operator could conduct feeding on both sides at the same time. Welding on the left while feeding on the right. Optimize the welding efficiency.

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 1

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 2

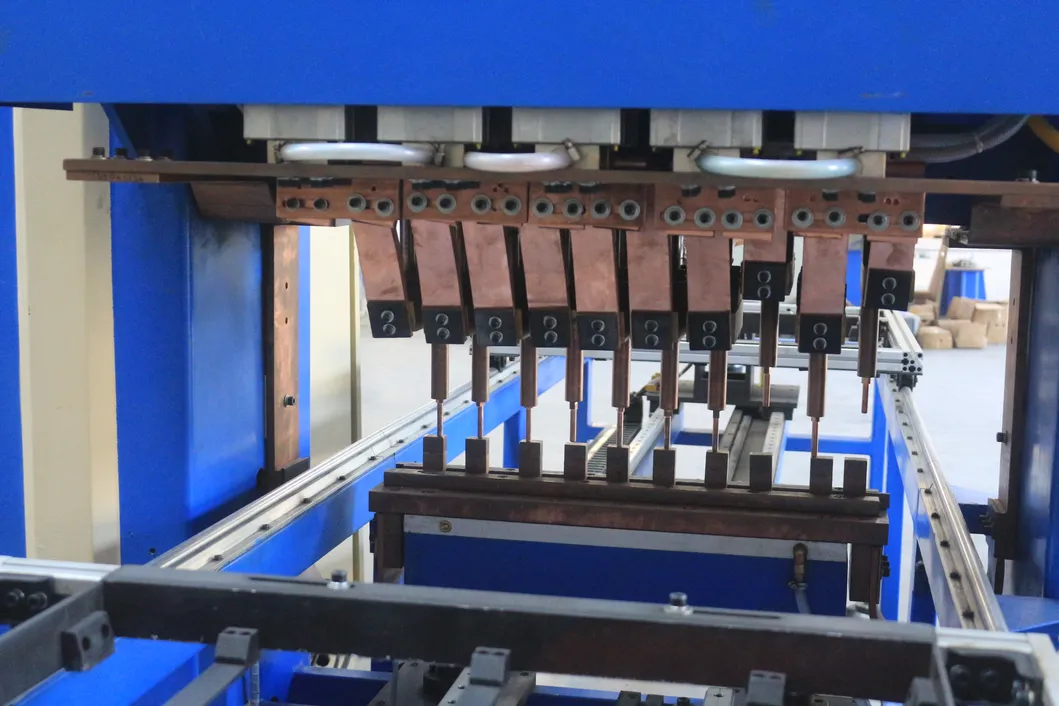

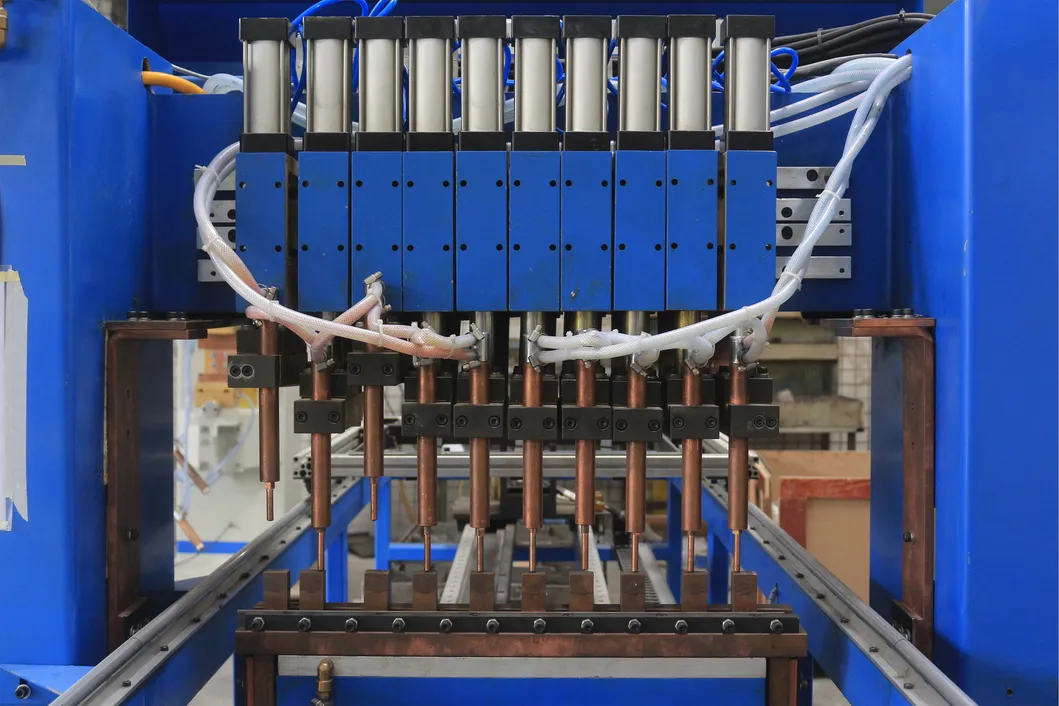

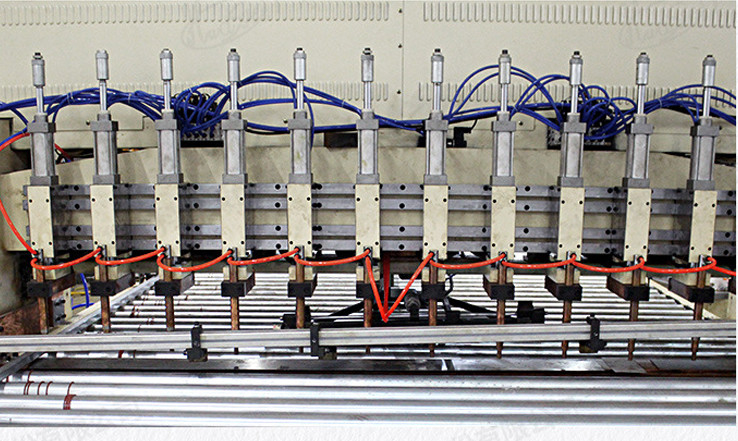

Welding Heads

Processing and design according to the drawings of each metal plate product. (customized)

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 3

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 4

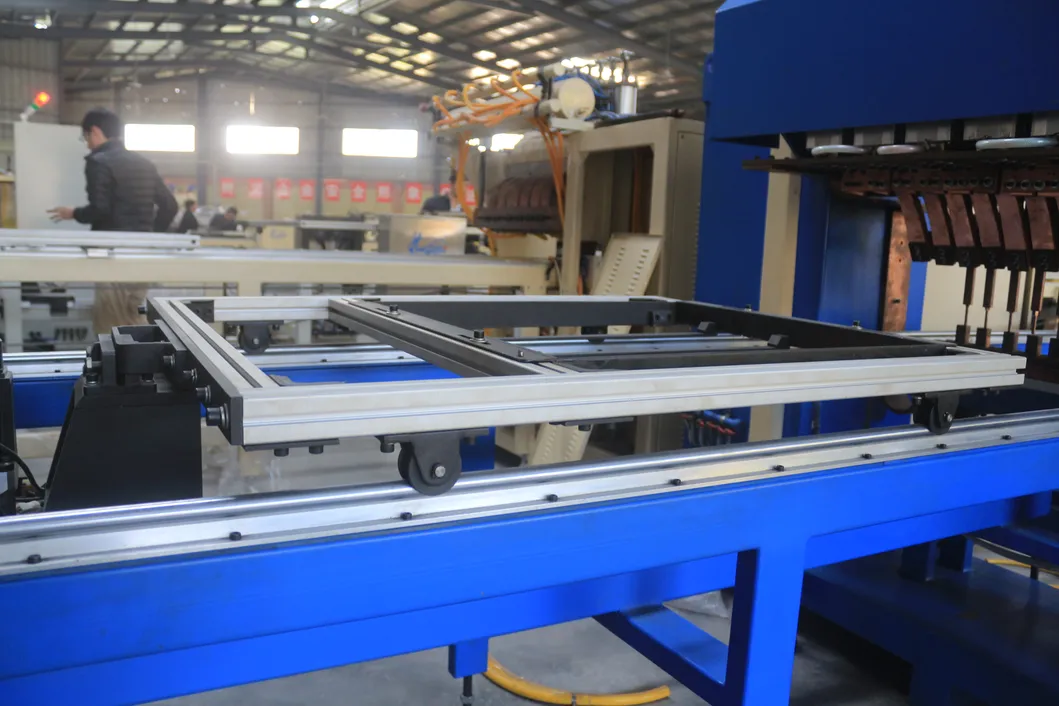

Automatic Feeding And Welding System

This Automatic Spot Welding Machine for conveyor belt Feeder is using the workpiece, then the workpiece will be transported to the setting position. The machine will conduct welding

No. S.N	Item	Specification	Description
1	Input voltage	380V ,2-phases	It can be customized, but only for 2-phases.
2	Input current	400A
3	Output voltage	12V
4	Max.Welding current	34000A
5	Effective welding width	1200mm (ajustable)
6	Effective welding length	3000mm (ajustable)
7	Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
8	Upper welding air cylinder	100x100mm	Double force pressing cylinder
9	Lower cylinder	160x100mm
